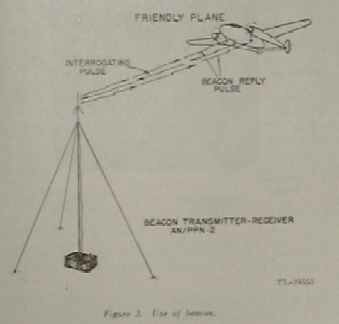

The Concept... The Beacon produces a signal for the aircraft to home in on.
|
|
 |
 |
|
The Airborne Drop Bag MX-183.... Front...
|
...and... Back
|
|
Everything is carried within the bag except for the 2 coax extension cables.
|
... which are tied to the rear of the bag.
|
|
The Black tube protruding from the steel eyelette is the battery breather.
|
|
 |
 |
|
Inside the Drop Bag... with Contents...
|
...without Contents...
|
|
Lid Section Contains coax Aerial cable and HS-30 Headset
|
Main section contains Beacon and Manual and side section the Aerial assy.
|
 |
 |
|
The Aerial - AS-73/PPN2
|
|
 |
|
|
The Aerial consists, Aerial pole, coax, counterpoise assy and 3 stakes
|
Detail shot of top of Aerial Pole with Counterpoise Assy.
|
 |
 |
|
To prevent the equipment falling into enemy hands, precise instructions were issued... can you run 25ft in three seconds?
|
The DESTructor fitting, RED CAP removed. When the detenator is present, the cap is secured to the fitting below by means of a wire.
|
|
|
|
|

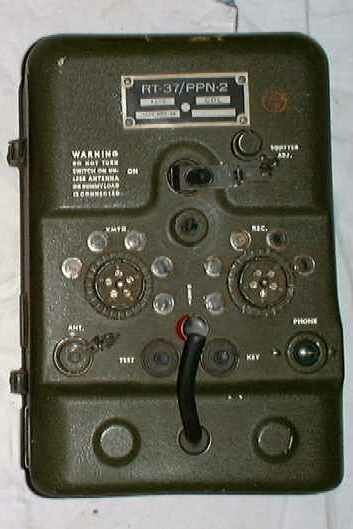

The Beacon... relatively small and lightweight with an internal battery, just requires the user to put together and switch on, relatively fool proof.
|
The Battery - BB 212/U. This occupies the bottom section of the Beacon, as illustrated in the photo below left..
|
 |
 |
|
Parts Identified.....
|
The Base, the spider web design assists the fragmentation of the base when the destructor is activated... similar to the "pineapple" chunk design of the American "Pineapple" grenade.
|
 |
 |
|
Any information, documentation or parts related to the PPN2 or any other Eureka/Rebecca systems also wanted Especially the British Eureka Mk2 series. Did you use one... do you know anyone that did... ? If so we would like to hear from you...
|
|
